The Bank file Translation System (BTS) is an add-on facility to the SYSPRO EFT module. Designed to interact specifically with the Accounts payable (AP) supplier and Cash Book (CB) beneficiary electronic payments process, BTS provides the user with an interface between SYSPRO and the various electronic banking services offered by major banking institutions.

VIEW Installation and User Documentation

Enable Bank For EFT

EFT payments required – Accounts Payable and Cashbook EFT payments are Bank driven and the associated beneficiaries need to be linked to a Bank that has been activated for EFT payments.

Bank Maintenance

Bank – A valid SYSPRO bank code that is linked to EFT suppliers/beneficiaries.
Bank format – A valid bank format is required to be entered and it will be validated against the existing BTS formats available. A browse button is available which will provide a list box to display the payment options available to the user. The user must select the banking facility that they are currently with.
Account name – The Name of Account with the bank.
Account number – This is the Company’s Bank account number.(Not required for USA)
Branch number – This is the Company’s Bank branch number. (Not required for all financial institutions)
Bank output file – Options available:
· Unique file name
· Same file name
· User-defined file name

Bank Formats

Bank format – A valid bank format is required to be selected and it will be validated against the existing BTS formats available. A browse button is available which will provide a list box to display the payment options available to the user.  The user must select the banking facility that they are currently using.

Flag Supplier As EFT

AP Supplier Maintenance – option in the “General Details” window to indicate whether a Supplier will be paid via EFT. To enable EFT payments for a supplier the ‘EFT payments required’ option needs to be ticked. This option will only be enabled if the Supplier is linked to an EFT enabled SYSPRO Bank

EFT Supplier Banking Report

List of EFT Suppliers – A report is produced listing all EFT suppliers from the AP module and beneficiaries from the CB module with their banking details. A selection can be made by Bank. This report will only print banking details pertaining to the bank format for the supplier/beneficiary. Eg. If the bank format is pre-format then only the credit line numbers will be displayed.

EFT Triggers

Setup trigger points (Current company) – This option is a very IMPORTANT step to run and failure to do so will result in no bank file being created during an EFT run. This option will set up two BTS programs at various trigger points in SYSPRO that will validate banking details accordingly and automatically create a bank file during an EFT run.

Use with confidence

Please click on the SYSPRO Version you are running for More Information and/or To Download.

Code SYSPRO Version Size KB Date Updated
BTS80 SYSPRO 8.0 6 863 7 November 2019
BTS70 SYSPRO 7.0 & Update 1 4 256 7 November 2019
BTS61SP1 SYSPRO 6.1 SP1 3 342 7 November 2019
BTS61 SYSPRO 6.1 2 530 13 March 2015
BTS60SP2 SYSPRO 6.0 SP2 1 867 8 June 2011

DOWNLOAD Source IT Software License Agreement (SLA)
VIEW Installation and User Documentation

FAQ

BTS

+ Installing or upgrading multiple Source IT packages at the same time

As each of the Source IT packages shares the same configuration procedure (SITINI), each package installation and configuration needs to be handled separately.
For each package being installed, place the downloaded package executable into the SYSPRO\base\upgrade folder, login to SYSPRO as a SYSPRO Administrator and allow for server update  to take place, log back in and run the configuration program (SITINI).

NOTE: The configuration program (SITINI) will only process the last package installation file updated onto the server.

Upgrading multiple Source IT packages to a newer SYSPRO version when they originally existed in the previous SYSPRO version does not require the configuration program (SITINI) to be run and the server update may be actioned using multiple package executables simultaneously by loading all of them into the SYSPRO\base\upgrade folder on the server and logging in as a SYSPRO Administrator .

+ Can we try out the packaged solutions

Our packaged products include a 30 day test license allowing for them to be installed in SYSPRO and used to determine whether the included functionality is adequate.
Note that our MAN product test licenses are limited to a single code or single merge.

If extension license codes are required to complete testing, feel free to contact us to arrange associated licenses.

+ BTS Menu does not exist in SYSPRO menu although EFT/ BTS triggers are functioning

This is encountered in the following circumstances:

  • SYSPRO upgraded to new version
  • SYSPRO server was reloaded after hardware upgrade or failure

Irrespective of the reason for the missing menu structure, it is always a better idea to run through the BTS update and configuration process as defined in the associated BTS installation document.

Once the current BTS programs and files are loaded onto the SYSPRO server, by running the Source IT initialisation routine, SITINI, selecting the “Create or remove menu” option and selecting the “OK” button will add the BTS menu structure into the SYSPRO main menu.

SITINI Menu

















+ SYSPRO has detected a non-recoverable run time system error on the server and will shutdown immediately

Further information usually displayed along with this message:

Message  number : 173
Message : Called program file not found in drive/directory

This information has been output to a log on your server with the file name: settings\”username”_RTS_ERROR.TXT (“username” will show the SYSPRO user name)

RunTimeError173













Solution:

This message has been encountered predominantly during the upgrading of SYSPRO versions and mostly with our triggered BTS product.

In these cases, the new version of SYSPRO has been installed in a new folder on the SYSPRO server and the original trigger BTS trigger points are addressing the BTS programs in the original folder location.

Simply manually remove all of the BTS trigger points and run the Source IT SITINI program and select to add the Trigger Points ONLY.

See HERE for more details regarding trigger configuration for BTS.

+ Bank formats catered for in BTS

The BTS product allows for the associated Banking Institutions format to be linked to the relative SYSPRO Bank.

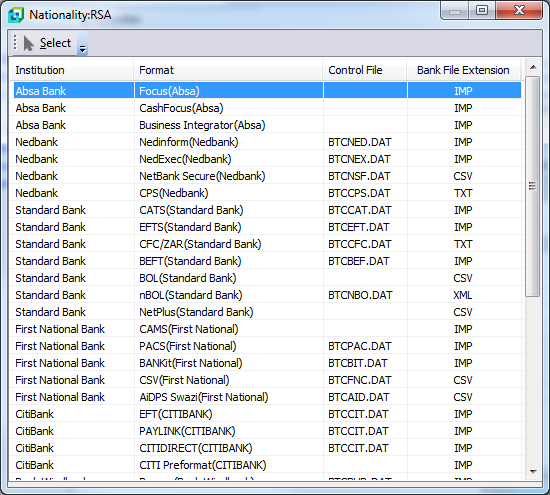

A list screen as below allows for the correct format to be selected.

bts_formats

























The following BTS Bank formats are available per banking institution.

ABSA Bank:

  • Focus
  • CashFocus
  • Business Integrator

Nedbank:

  • Nedinform
  • NedExec
  • NetBank Secure
  • CPS

Standard Bank:

  • CATS
  • EFTS
  • CFC/ZAR
  • BEFT
  • BOL
  • nBOL
  • NetPlus

First National Bank:

  • CAMS
  • PACS
  • BANKit
  • CSV
  • AiDPS Swazi

CITIBANK:

  • EFT
  • PAYLINK
  • CITIDIRECT
  • CITI Preformat

Bank Windhoek:

  • Bureau

Mercantile Bank:

  • BANK@bility

BOE Bank:

  • BOE

JP Morgan Bank:

  • Global ACH GDFF
  • FTI GMT

Stanbic:

  • SFI

Barclays Bank:

  • SFI
  • Local Payment

Standard Chartered Bank:

  • STS
  • iPAYMENTS
  • SAB-iPAY
  • ePAYMENTS
  • Straight2B

HSBC Bank:

  • iFILE

Kenya Commercial Bank:

  • KCB Quickpay

Commercial bank of Africa:

  • Trade Payments CSV

ABN Amro Bank:

  • BSI VDB

Fihrst Management Systems:

  • FIHRST

Banco Comercial:

  • BCI(Banco Comercial)

Australian Banks:

  • Direct Entry Payments

USA Nacha:

  • NACHA

HSBC Bank India:

  • iFILE

+ The imported file failed the hash check validation – NetBank

This process deals with SYSPRO 7 upgrades for clients on Nedbank  NETBANK SECURE format who merely run the conversion process and do not capture anything new using the BTS Bank Maintenance programs.

SCENARIO:

The client is upgrading to SYSPRO 7.
Their bank format is Netbank Secure
They have a TEST SERVER at the moment and have installed SYSPRO 7 and BTS on this test server.
They ran the conversion process for BTS and process was successful.
The SYSPRO user who is doing the upgrade is not the user who normally runs BTS.
This process is happening on a different server to their live SYSPRO as they are testing.
This is the error encountered indicating that the SEED KEY is incorrect or missing:

NetBankHashCheckFailure















The DLL will not automatically register as this is an UPGRADE and the generic conversion program just runs. Also it is pointless to register the DLL at this point as the administrator will not be running BTS in the future.

The seed key was correct and not missing from BTS however the DLL was not installed as this was a conversion that just converts the files into the SYSPRO 7 format.

SOLUTION:

The client was requested to perform the  following to register the DLL which resolved the problem and generated the encryption key into the footer record. This encryption key is generated by a DLL file that gets installed automatically onto the CLIENT machine that runs BTS.

Run the BTS Bank Maintenance program where the Netbank Secure format was selected and modify something (for example, remove the last character of the Account name and type it back in) which will invoke the SAVE key and click on SAVE.
Once SAVE has been selected it will register the DLL file. This needs to be done on ALL client machines that run BTS.
If security is high on a certain client machine it will give you an error saying it cannot register the DLL.
The BTS installation manual (see Netbank Secure Format Procedure) explains how to register this DLL manually for problematic client machines.
Once completed, re-extract the EFT  batch and the encryption key will then be present on the trailer record.

+ “HASH NOT MATCHED” error importing file into BANKIT – First National Bank

When importing a BTS file into the FNB BANKIT system, an error is returned indicating “HASH NOT MATCHED”.

This message may be encountered if the “Encryption required” option has NOT been selected in the BTS Bank Maintenance screen as per the below image.
Check this “Encryption required” option, save the change and perform an EFT Re-extraction to generate a new BTS file to import into the BANKIT software.

HashNotMatchedFNBBankit





+ How To License Source IT Programs

Whether licensing any of the Source IT packaged products or bespoke development, the license entry is to be done for each SYSPRO company as required.

Select the Source IT license option based on the process being relicensed (see the highlighted options indicated below)

NOTE: If the Source IT product menu option does not exist on your Program List, see this FAQ.

RelicenseFAQ



The license information is entered into the Source IT License Control screen as per image below.

NOTE: As of August 2016, the is a new “V1” license version as per the representation in the title bar. This “V1” representation will also be visible on the Source IT license report.

BTSLicense

















Expiry dateenter the license expiry date as per the Source IT license report. To ensure correct date format, make use of the date browser to select the expiry date.
New Codeenter the license code as issued by the Source IT offices.
Ignore warnings – make sure that this checkbox is unticked.  This will ensure that the expiry warning message will be displayed in the month of expiry.
Evaluation License – only tick this checkbox when the Source IT license report indicates that the license is an evaluation license.
Savewill validate the entered values and verify if the license code is valid for the expiry date based on specifics pertaining to the SYSPRO registered company currently logged into. If deemed valid, the information will be stored as entered.
Closewill exit the program without validating the information on the screen. If the “Ignore warnings” checkbox status was modified, the new setting will be applied to the license validation process in the future.

The license process is written to provide a warning message each time it is run in the expiry month indicating the number of days until the license expires as per below figure. This functionality is deactivated by ticking the “Ignore warnings” option on the above License Control screen.

2.4.5.3_MANLicenseExp2Days_2.4.5.3

+ Netbank preformat setup. Import batch – error

When setting up Netbank “pre-format” and you get th “Import batch – error” message as per this image:

Using the CSV template (using beneficiary reference number) option as per the highlighted option the image below has been represented as correct.

+ Trigger Programs for Accounts Payable Supplier Maintenance and/or Cashbook Beneficiary Maintenance are not working

If you are on SYSPRO 6.0 SP2 onwards and you were using BTS on a prior version of SYSPRO,  the program names for AP and CB supplier maintenance have changed and that is the reason the triggers are not working. The SITINI program will add the new program names to your system then you need to do the following:

Manually remove all 7 BTS trigger entries:

BTSAPTriggers BTSEFTTriggers

-Run Source IT setup program (SITINI) again and select “Setup trigger points(Current company)” and “OK” to setup the trigger points correctly.

NOTE: This process needs to be repeated in each separate SYSPRO company that uses BTS.

SITINI

+ When saving an EFT supplier or trying to do an EFT extract the following message is displayed “Program not found(or program corrupted” – Program name IMPTRR.int”

This error means that the trigger program BTTSVL or BTTCAL could not be found in the directory specified in the trigger process. Usually this error occurs if you have changed the directory for the SYSPRO installation and have not maintained the triggers for this directory change. You need to maintain the triggers within SYSPRO and deactivate the relevant ones by un-ticking them. The following triggers need to be removed:
A/P Supplier Maintenance – All 3 of them
EFT Beneficiary Maintenance – All 3 of them
EFT Payment Extract

 BTSAPTriggers

BTSEFTTriggers

Run Source IT setup program (SITINI) again and select “Setup trigger points(Current company)” and “OK” to setup the trigger points correctly.

NOTE: This process needs to be repeated in each separate SYSPRO company that uses BTS.

SITINI

+ BTS output bank file (.IMP / .CSV / .TXT) is not created OR cannot be found

a) Triggers are not set up and need to be set up for each company, unlike the first 3 options of the SITINI process which is recognized by all companies when run. In this scenario, run SITINI and tick option 5 only for the company that is not creating the bank file.

SITINI
b) When suppliers details are incorrect i.e: incorrect banking details an error message appears: ‘Bank file will not be created as suppliers with invalid banking details were found. Please rectify as per the report and re-extract’ . In this scenario please read the validation report that will pinpoint the invalid suppliers and rectify the problems before trying to re-extract the batch again.

NOTE: The bank file will be named as per option selected by the user in the BTS configuration and will be placed in the directory that has been set up in the EFT Bank control program for that bank. If no directory has been set up, a validation error will be displayed and no bank file will be created. The user will need to set up the relevant directory and re-extract the batch. Every time a new batch is extracted or an existing batch is re-extracted a bank file will be created. The re-extract may be used if the supplier/beneficiary bank details were incorrect. The user may correct them in the relevant maintenance program and re-extract that particular batch. (Refer user manual : EFT Batch extract/re-extract process)

+ The bank is rejecting the import file

Make sure that you are uploading the BTS file and NOT the EFT XML file. If the extension of the file you are uploading is .XML then that is the wrong file. The BTS files generally have a .IMP extension with an exception of a few that could have a .CSV or .TXT extension.

+ Subsequent to a SYSPRO EFT extract, multiple Source IT BTS output files are created for the same extract

BTS has been  loaded twice and the associated triggers have been setup more than once.

Either simply maintain the triggers within SYSPRO and deactivate the relevant ones by un-ticking them. The following triggers need to be removed:

A/P Supplier Maintenance – All 3 of them
EFT Beneficiary Maintenance – All 3 of them
EFT Payment Extract

BTSAPTriggers

btsefttriggers















Or alternatively modify each trigger point and remove the duplicate program entry.

DuplicateTrigger

+ When installing a Source IT product and you get a message, ‘SITCUS.IMP’ cannot be found please copy into CUSPROG folder

When running SITINI, do not tick the 4th block: “ Create or remove entries in CUSTOM.IMP”

+ BTS Validation screen appears notifying ‘The BTSNEDHash.dll object could not be registered on this machine!’

Normally this error is permissions on the client computer. The program does the following:
1. It copies the BTSNEDHash.dll file from the SERVER SYSPRO60\BASE directory to the CLIENT SYSPRO60\BASE directory (so they need permissions on the client BASE for a copy)
2. It then creates a directory called BTSNED on the CLIENT within the BASE directory (so they need permissions to create a directory)
3. It then copies BTSNEDHash.dll from the CLIENT SYSPRO60\BASE to CLIENT SYSPRO60\BASE\BTSNED (so they need permissions for that copy)
4. It then runs a process to REGISTER the DLL file into the registry (so they need permissions for that as well)

We are not certain of the specifics pertaining to each site to correctly configure the permissions but an administrator of the network needs to check that all is in order.

Alternatively, there is a manual way to do this process. Refer to BTS installation manual, page 22. You need to:
• create a directory called BTSNED within the BASE directory on the clientc
• Copy BTSNEDHash.dll to both BASE and BASE\BTSNED on the client machine from the SERVER BASE.
• run a DOS SESSION on the CLIENT MACHINE and follow the steps as defined in the BTS Installation Manual.

NB. Command prompt, even though you logged in as an administrator, needs to be ‘Run as administrator’, So right click on Command Prompt (under your accessories list) and select ‘Run as administrator ’ The DOS SESSION must be ‘Run as administrator ’

+ When server is lost and BTS is being re-installed and the BTS validation screen appears notifying ‘The file path in EFTCTL does not exist or you may not have permissions to this directory’

You are missing the path in the EFT module that you would want the SYSPRO XML file to be output to. Our BTS module uses this path to create the bank import file. It is mentioned in our BTS user manual

+ Error copying message received: “There was a problem copying SITMEN.IMP from the programs directory to the customs program directory.Please check the relevant permissions and try again”

When you run the Source IT initialisation setup program (SITINI) process to setup menus etc. the routine attempts to copy the SITMEN.IMP file (and other .IMP files) into the folder you specified in the Custom programs folder

This usually relates to 1 of 2 problems:

  1. The SITMEN.IMP file is not in the program folder (put installation executable in SYSPRO60\base\upgrade folder and allow update)
  2. The folder specified in the system setup as per the screen image below has an issue (incorrect naming, permissions etc)

SystemSetupCusprog

+ Error message received when trying to import using Standard Bank – Business Online: “Batch Import unsuccessful. Debits not allowed in Payments”

BTSStandardEFTSErrorMSG

In the Bank Code Maintenance the Bank output file that should be ticked  is ‘Unique file name’. And EFTS details in bank parameters should be changed to CREDIT (not DEBIT)

BTSStandardEFTSError

+ Running SYSPRO 6.1 SP1 and encounters “random characters” in the Source IT License “System:” field and a message “License Code is Invalid” are displayed when trying to license

This particular license issue (random characters in “System:” code field) relates to the fact that for SYSPRO 6.1 SP1, we needed to make licensing modifications to our products to accommodate the SYSPRO APP Store licensing. Please FIRST DOWNLOAD the latest version of BTS (make reference to BTS installation manual) and ensure that client is on minimum PORT 007 of SYSPRO 6.1 SP1, ALSO ensure the BTS triggers are pointing to the current version of the trigger programs and that the SYSPRO 6.1 SP1 installation has been installed in a new folder location (BTS triggers MUST NOT point to the old version of the trigger programs on SYSPRO 6.1 that client was running). To automatically correct trigger entries, manually remove the associated triggers and run SITINI program to setup triggers correctly.

Usually encountered when the customer is using one of the MAN products which has the new license solution.

RubbishSystemCode

+ When upgrading from SYSPRO 6.1 SP1 and encounters “no characters” in the Source IT License “System:” field and a message “License Code is Invalid” is displayed when trying to license when relicensing directly from SYSPRO menu

Scenario:
On attempt to relicense BTS, SYSPRO will advise that an upgrade is required, proceed with the upgrade as the process has picked up that the latest version of files for BTS is required and this takes place by a ‘self-healing’ upgrade process where the old files are replaced with newer files as required and the triggers for BTS is also created correctly.

SpaceInSystemCode

Solution:
1. Always ensure that the latest BTS product has been installed
2. Do not run the “SIT001” program directly but rather run the BTS re-license program “BTPLIC”
